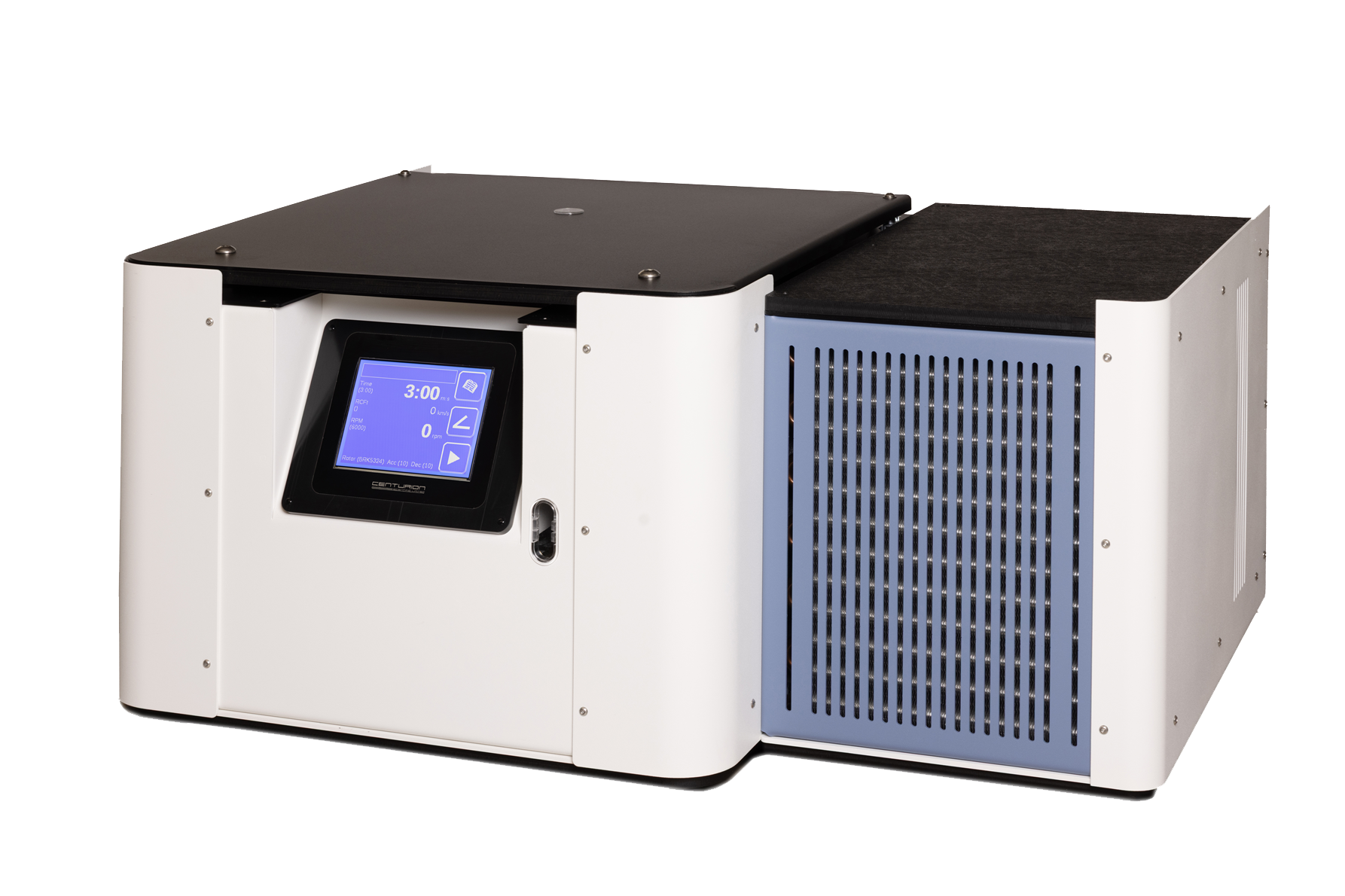

Centurion ProAnalytical Large Centrifuge (2L & 3L Max)
The Centurion ProAnalytical Large Centrifuge is perfect for any laboratory or clinical setting that needs to handle large amounts of sample volumes. These centrifuges are supplied with either an LCD or LED screen, as either ambient or temperature controlled, and a variety of rotor options are available.
Centurion Centrifuges are built with only the best components and meet the highest manufacturing standards, complying with EU standards of quality and medical devices IEC 61010 and CE conformity test marks emission, immunity to EN/IEC 61326-1, Class B.
Our centrifuges offer orientation acceleration rates to prevent initial sample side deposits, have a host of safety features (including multi-lid locking, imbalance detection, and overspeed sensors), high-quality, maintenance-free brushless motors, plus quiet running of under 60db (depending on the rotor).
All Centurion centrifuges come with a 2-year warranty a standard.
If you require multiple rotors, reducers, or adaptors please contact us, and we will happily assist you with whatever you need and provide you with a quotation and lead time.
Centrifuge Technical Specification – Ambient model
- Centrifuge Dimensions (WxDxH) – 575 x 665 x 415mm
- Weight – 90 KG (without Rotor)
- Power– 750 Watts
- Max Timer – 0-9 Hours & Hold (30 second steps)
- RCF – 10 – 22,0000G
- RPM – 15,000 RPM (10 RPM steps)
- Power Adaptor – Input: 230V, 50/60Hz
- Memory – 99 Programs
- Accel. Rates – 10 Programs
- Decel. Rates – 10 Programs
- Pulse Short Run – for fast pelleting
- W2t Consistency – Calculate the accumulated centrifugal effect during a run (LCD option only).
Centrifuge Technical Specification – Temperature Controlled / Refrigerated model
- Centrifuge Dimensions (WxDxH) – 904 x 665 x 422mm
- Weight – 105 KG (without Rotor)
- Power– 1200 Watts
- Max Timer – 0-9 Hours & Hold (30 second steps)
- RCF – 10 – 22,0000G
- RPM – 15,000 RPM (10 RPM steps)
- Temp – -10°C to +40°C PID controlled to +/- 1°C
- Power Adaptor – Input: 230V, 50/60Hz
- Memory – 99 Programs
- Accel. Rates – 10 Programs
- Decel. Rates – 10 Programs
- Pulse Short Run – for fast pelleting
- W2t Consistency – Calculate the accumulated centrifugal effect during a run (LCD option only).
Centrifuge Options
- LED Screen – Simple control of the device’s essential parameters. Perfect for routine centrifugation tasks.
- LCD Screen – View multiple parameters at once, additional functionality, more precise control with W2t, based on relative centrifugal force over time. Ideal for applications needing higher accuracy and advanced programming.
Centrifuge Rotor Options
For full rotor and reducer details please see the brochure.
FA5424 Micro Fixed Angle Rotor 24 x 1.5-2.2ml. Includes Lid.
Max RPM: 15,000
Max Tube Size: 11 x 40mm
Reducers Available: RS04, RS05
FA5436 Micro Fixed Angle Rotor 36 x 0.5ml. Includes Lid.
Max RPM: 15,000
Max Tube Size: 8 x 30mm
Reducers Available: None
FA5448 Micro Fixed Angle Rotor 48 x 0.2ml. Includes Lid.
Max RPM: 15,000
Max Tube Size: 6 x 30mm
Reducers Available: None
FA5494 Micro Fixed Angle Rotor 4 x Pcr Strip. Includes Lid.
Max RPM: 15,000
Max Tube Size: PCR Strip
Reducers Available: None
FA5348 Fixed Angle Rotor 48×2 with sealed lid. Includes Lid.
Max RPM: 10,000
Max Tube Size: 11 x 40mm
Reducers Available: RS04, RS05
FA5349 Fixed Angle Rotor 24×2/24x.5 with sealed lid. Includes Lid.
Max RPM: 10,000
Max Tube Size: 11 x 50mm & 6 x 30mm
Reducers Available: RS04, RS05
FA5398 Fixed Angle Rotor 8 Place PCR Strips with sealed lid. Includes Lid.
Max RPM: 10,000
Max Tube Size: PCR Strip
Reducers Available: None
FA5308 Low speed Fixed Angle Rotor 8 x 50ml. Includes Lid.
Max RPM: 6,000
Max Tube Size: 30 x 115mm
Reducers Available: RM15, RM25
FA5324 Low speed Fixed Angle Rotor 24 x 15ml. Includes Lid.
Max RPM: 6,000
Max Tube Size: 17 x 100mm
Reducers Available: RM05, RM10
FA5100 Low speed Fixed Angle Rotor 6 x 100ml. Includes Lid.
Max RPM: 6,000
Max Tube Size: 45 x 100mm
Reducers Available: RM50
FA5208 High speed Fixed Angle Rotor 8 x 50ml. Includes Lid.
Max RPM: 10,000
Max Tube Size: 30 x 115mm
Reducers Available: RM15, RM25
FA5224 High speed Fixed Angle Rotor 24 x 15ml. Includes Lid.
Max RPM: 10,000
Max Tube Size: 17 x 100mm
Reducers Available: RM05, RM10
FA5210 High speed Fixed Angle Rotor 6 x 100ml. Includes Lid.
Max RPM: 10,000
Max Tube Size: 45 x 100mm
Reducers Available: RM50
FA5256 High speed Fixed Angle Rotor 6 x 250ml. No Lid Available.
Max RPM: 10,000
Max Tube Size: 62 x 100mm
Reducers Available: RM50, RM85-100
SO3000 Swing Out 4-place Rotor with Rings (Requires Buckets).
Max RPM: 4,000
Bucket Required: 500ml (C-B2001) / 750ml (CB-3001)
Reducers Available: See brochure
MT5540 Microtitor Plate Rotor including Buckets (2).
Max RPM: 3,500
Max Tube Size: Microtitor Plate
Reducers Available: None
Centrifuge Brochure
For the full specification and all available options for the Centurion ProAnalytical Micro Centrifuge please view the product brochure below:
